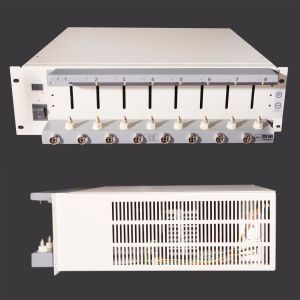

Neware 5V6A Battery cycle Testing Equipment Pouch Cells Capacitor Cycler
1 . Nowadays battery capacity density becomes higher and higher , thats the trend of this whole energy industry , people need smaller dimension battery to contain more energy . New technology and upgraded producing process make this idea come into reality . Of course , high C - Rate charge - Quick charge is another reason for higher current testers become more popular than before . For a 3000mAh cell battery , people want to charge it at 6000mA - 2C or even 9000mA - 3C current . And in some labs , researchers are trying 10C or even higher C - Rate charge or discharge . In this situation , 5V12A is the very rising star for both battery manufactures and researchers .
2 . The model 5V6A can be configured with multi - current range channels , which have a current control range of 0.5mA to 0.1A , 0.1A to 3A , 3A to 6A as standard . The accuracy for current and voltage on these channels is 0.05 percent of FS . From the base system that provides the highest level of accuracy and time resolution , features can be added to allow the 5V6A test system to perform virtualy many type of test , with many type of products – cylindrical , pouch and coin cells , super – capacitors , etc , and chemistries .
3 . Neware 5V6A is the most popular battery tester ever , more than 50 percent customers would choose this model as their main products . For customers who came across Neware the first time , 5V6A is also strongly suggested as their tryout demo machine . Neware 5V6A is powerful , reliable , it works on the very popular coin cell , cylindrical cell and prismatic cells , etc . It can be used for battery formation and grading , cycle - life test , performance and so on . From year 2016 , dual range 5V6A was successfully replaced the traditional 5V6A model . Higher range 100mA - 3A - 6A , makes it the best choice for cycle - life test and C - Rate test on 3C battery cells . Lower range 0.5mA - 100mA - 1A , makes 5V6A great for small pouch , coin cell and small battery test .
| Project index | Parameter index | |
|---|---|---|
| Voltage | Per Channel Voltage Range | 1.5V - 5V |
| Discharge Min Voltage | 1.5V | |
| Accuracy | 0.05 percent of FS | |
| Stability | 0.05 percent of FS | |
| Current | Per Channel Current Range | Range1 , 5mA - 1A Range2 , 1A - 6A Range3 , 6A - 12A |
| Accuracy | 0.05 percent of FS | |
| Stability | 0.05 percent of FS | |
| Power | Per Channel Output Power | 30W |
| Stop current | Range 1 , 2mA Range 2 , 12mA Range 3 , 24mA | |
| Stability | 0.1percent of FS | |
| Time | Current Response Time | 1ms |
| Data Recording | Record Condition | Min Time - 100mS |
| Min Voltage - 10mV | ||
| Min Current - Range 1 , 2mA Range 2 , 12mA Range 3 , 24mA | ||
| Record Frequency | 10Hz | |
| Charge | Charge Mode | CCCharge , CVCharge , CCCVCharge , CPCharge |
| End Conditon | Voltage , Current , Relative Time , Capacity , -deltaV | |
| Discharge | Discharge Mode | CCD , CPD , CRD |
| End Condition | Voltage , Current , Relative Time , Capacity | |
| Pulse | charge | CCC , CPC |
| Discharge | CCD , CPD | |
| Min Pulse Width | 500ms | |
| Automated Switch | Automated swith from charge to discharge for each pulse | |
| End Condition | Voltage, Test Time | |
| Protection | Software Protection | Power - down Data Protection |
| Off - line Testing Function | ||
| Setting Protection Condition,Setting Parameter - Low Voltage limit , Upper Voltage limit , Low Current limit , Upper Current limit , Delay Time | ||
| IP protection level | Protection level IP20 | |
| Voltage and Current Testing Sample | 4 - wire connecting | |
| Noise | Less than 85dB | |
| Database | MySQL Database | |
| A Means of Communication of Upper Machine | TCP / IP Protocol | |
| Data Output | EXCEL , TXT , Graph | |
| Communication Interface | Ethernet Port | |
| Per Unit Main Channels No. | 8 | |
| Dimensions | 3U , 480 – 330 - 180mm | |
